Titanium pipe Coil
2.Technic: Forging+ Machining
3.Standard: ANSI B16.5，JIS B2220，DIN2627-2628，ASME，GB/T 9116，ASTM B16.5
4.Package: Wooden Paper box and customized
5.Size: Customized
6.Payment:According to customers' requirements
7.Origin: China
8.Application: Chemical equipment, heat exchangers, other equipment
Titanium pipe coils Description
Titanium pipe coils are mainly used for heating and cooling containers. Their fixing methods are divided into detachable and non-detachable, mainly depending on the medium of the material and the corrosion of the coil. However, in the design, detachable coils are mainly used for easy maintenance and cleaning.
Titanium coils are primarily used for heating and cooling containers. Their fixing methods are categorized into detachable and non-detachable, mainly depending on the medium of the material and the coil's corrosion resistance. However, in design, detachable coils are generally preferred for easier maintenance and cleaning.
The manufacturing process of titanium coil heat exchangers is relatively simple, but determining the mold size is highly complex. For each coil specification, multiple trial productions are required to determine the appropriate mold size for the coil diameter, leading to material and time wastage. If the mold size for the required coil diameter can be quickly determined, it would significantly improve efficiency. Therefore, finding a professional coil manufacturer is crucial for the future production of titanium coil heat exchangers.
The technical parameters of titanium coils
Product name
titanium pipe coil
Material
TA1, TA2, TA10, etc.
Coil Outer diameter
from 300.0mm to 3000.0mm
Tube diameter
from 8.0mm to 114.0mm
Titanium pipe thickness
from 1.0mm to 6.0mm
Coil type
The types of titanium coils include serpentine tubes, U-shaped tubes, spiral coils, spring titanium coils, titanium special-shaped tubes, titanium columnar tubes, etc.
Titanium pipe coil production process
The titanium pipe coil production process is as follows:
First, the titanium tube undergoes retesting, including pressure testing, mechanical performance testing, and tensile testing. After passing the retest, the straight pipe is welded into a single piece with a length approximately three times the unfolded circumference. One end of the long tube is fixed onto the mold, supported with a fixed wheel, and then wound using a coil machine. The coiled titanium tube must be bundled and secured before being welded onto the bracket. After welding, the coil undergoes pressurization and penetration testing. Additionally, non-destructive testing and photographic documentation can be performed according to customer requirements. Once the inspection is passed, the coils are packaged and stored.
Application Scope of Titanium Coils
Titanium coils are widely used in industries such as chemicals, petroleum, metallurgy, power generation, seawater desalination, chlor-alkali, and salt production. They are also utilized in the production of titanium dioxide, glycine, nitroaminophenol, pesticides, fuel chemicals, pesticide intermediates, cyanuric acid, dichlorocyanuric acid, and trichlorocyanuric acid.
Performance comparison of several common titanium pipe coils
| Grade | Tensile Strenght | Yiled Strength | Elongation | Reduction of Area |
| GR2 | 425MPa Min | 275MPa Min | 20 % Min | 30% MIN |
| GR5 | 895MPa Min | 828MPa Min | 10% Min | 25% MIN |
| GR7 | 345MPa Min | 275MPa Min | 20 % Min | 30% MIN |
| GR12 | 483MPa Min | 345MPa Min | 18% MIN | 25% MIN |

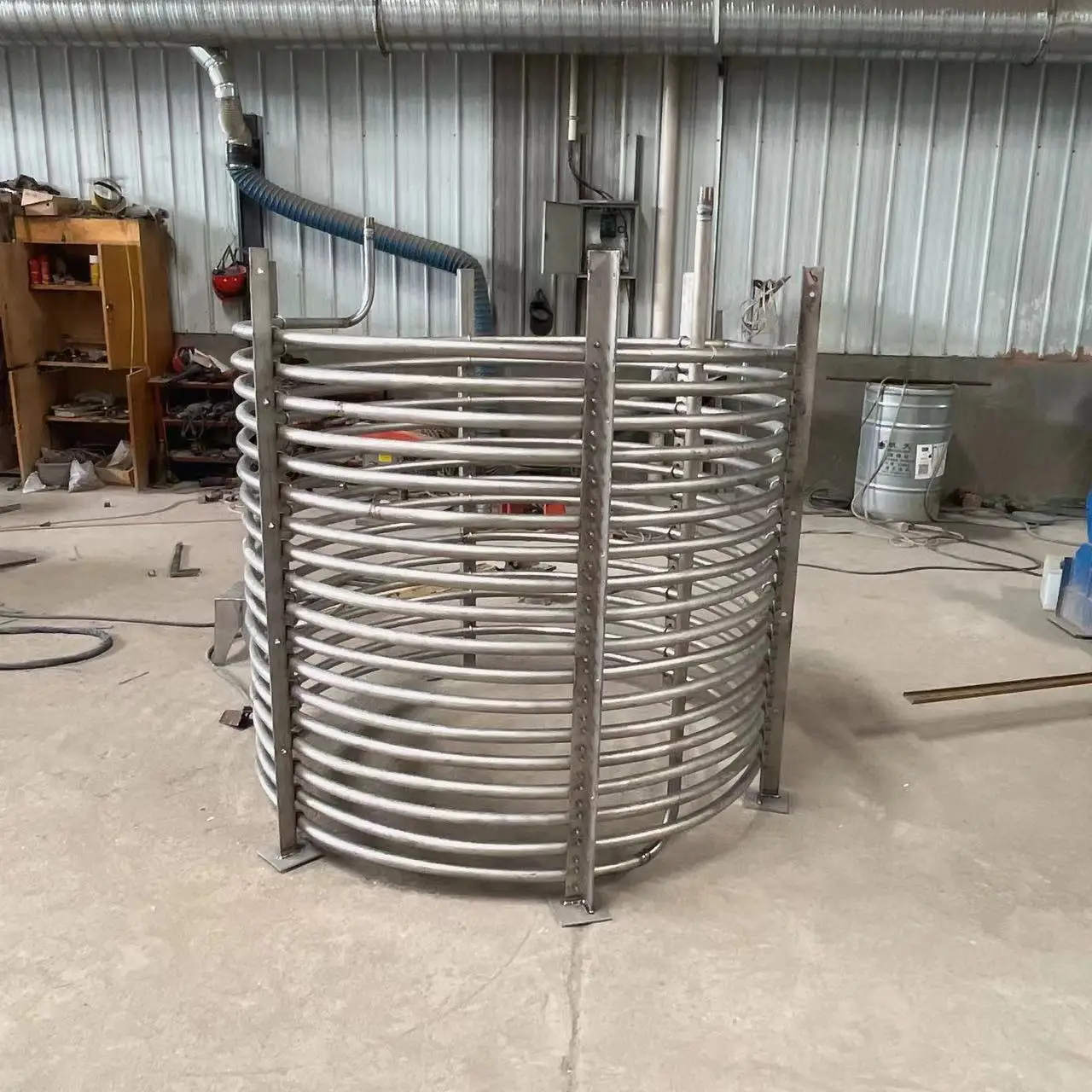

titanium pipe coil sho
contact us
NOTE:
The specifications and main parameters of titanium coils can be customized according to the requirements of the demand side.
If you are interested in our products, please contact us to discuss and send drawings. Confirm the material, specifications, quantity, and technical requirements of the product, and we will provide you with the most competitive price.
EMAIL:krystal@yuanzekai.com
