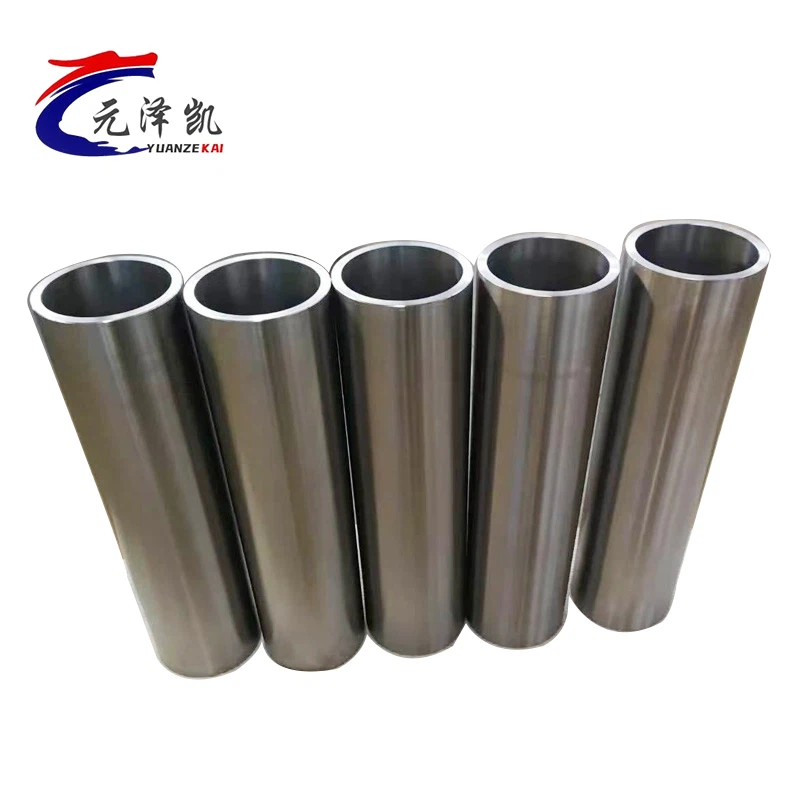

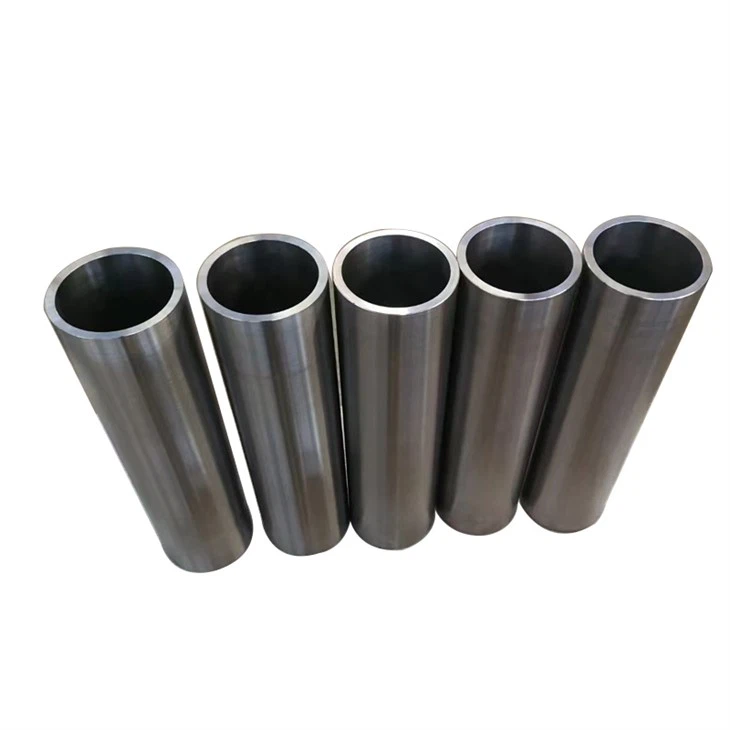

Titanium Alloy GR5 Tube
Size: Wall thickness (1.5~100mm) Outer diameter (13~300mm) Length (within 6m)
Material: Gr5 TC6 TC11 TC18
Standard: ASTM B348,
Process technology: drilling/hot rolling titanium alloy pipes, CNC machining,
Note: Customization can be made according to customer drawings
Products Description
The manufacturing process of titanium alloy GR5 tube is different from that of ordinary titanium alloy pipe. Ordinary titanium pipe and GR9 titanium tubes are made from tube blanks through the cold rolling process of a rolling mill. They have the characteristics of high material production, low cost, and affordable price. However, GR5 titanium tubes and TC11 and TC18 titanium tubes cannot be rolled by a rolling mill due to their high strength and hardness. Usually, titanium rods are processed into finished products through drilling, internal drilling, and external machining. The processing cost is high, and the price is sold by piece, not by kilogram. However, bulk 6al-4v titanium tubes can be produced through hot rolling process.
|
Name |
Titanium alloy GR5 tube |
|
Size |
Drilled titanium alloy pipe: wall thickness (1.5 ~ 100mm) outer diameter (13 ~ 300mm) length (within 6m) Welded pipe: wall thickness (0.5 ~ 5mm), outer diameter (2.0 ~ 120mm), length (1000-4000mm) |
|
Material |
Drilled / hot rolled titanium alloy tube: Gr5 TC6 TC11 TC18 |
|
Standard |
ASTM B348 |
|
Note |
Can provide fixed or double scale according to customer requirements |
Shaanxi Yuanzekai Metal Technology can provide customized processing services for Titanium Alloy GR5 Tube of various specifications, with a minimum diameter of 12mm and a maximum diameter of 1000mm. We can also make one piece. Customers in need can send us an email to krystal@yuanzekai.com or WhatsApp us to tell me your needs.
